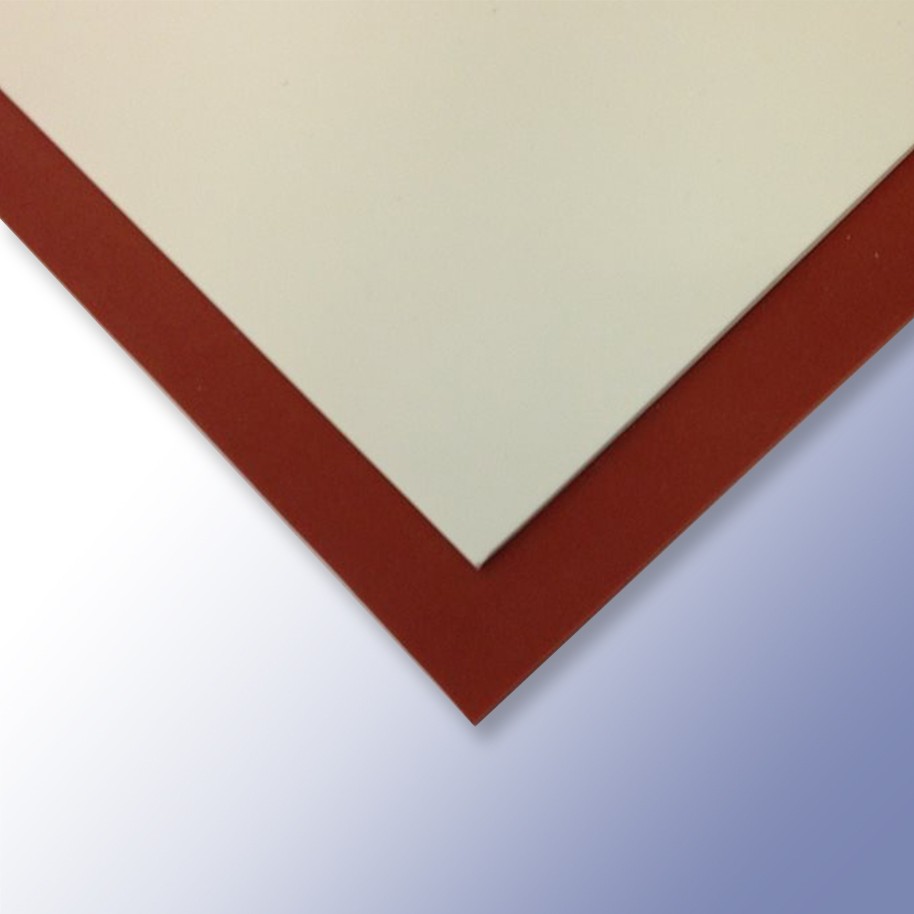

SILONA High Temp Silicone Sheet

Schrijf de eerste review van dit product

Snel overzicht

High temperature silicone sheeting suitable for working conditions up to 300°C.

Sold in linear meter lengths.

FDA = Complies with Food & Drugs Association

Silicone sheeting has no resistance to oils

Available with pressure sensitive adhesive backing and fabrication service to create gaskets or strips - please call us for more information.

Rubber sheet tolerance allowance - width 3%, length 5%.
Per strekkende meter
47.2 47.2
47.4 47.4
53.1 53.1
72 72
90.7 90.7
119.2 119.2
162.6 162.6
196.6 196.6
227 227
269.5 269.5
345.9 345.9
406.9 406.9
509.8 509.8
569.1 569.1
64.2 64.2
61.9 61.9
63 63
82.4 82.4
101.4 101.4
129.4 129.4
173.8 173.8
208 208
238.4 238.4
330.1 330.1
358.6 358.6
406.9 406.9
509.8 509.8
681.8 681.8
Article No. Thickness
(mm)
Colour Tolerance
(±mm)
Pijs per meter Aantal
3043895 0.3Rood0.015
€ 53,86
3043896 0.5Rood0.025
€ 54,04
3043897 1Rood0.05
€ 60,61
3043898 1.5Rood0.075
€ 82,15
3043899 2Rood0.1
€ 103,51
3043900 3Rood0.15
€ 136,01
3043901 4Rood0.2
€ 185,48
3043902 5Rood0.25
€ 224,37
3043903 6Rood0.3
€ 259,05
3043904 8Rood0.4
€ 307,49
3043905 10Rood0.5
€ 394,69
3043906 12Rood0.6
€ 464,25
3043907 15Rood0.75
€ 581,64
3043908 20Rood1
€ 649,33
3043909 0.3Wit0.015
€ 73,21
3043910 0.5Wit0.025
€ 70,65
3043911 1Wit0.05
€ 71,93
3043912 1.5Wit0.075
€ 94,02
3043913 2Wit0.1
€ 115,74
3043914 3Wit0.15
€ 147,69
3043915 4Wit0.2
€ 198,26
3043916 5Wit0.25
€ 237,33
3043917 6Wit0.3
€ 272,01
3043918 8Wit0.4
€ 376,62
3043919 10Wit0.5
€ 409,12
3043920 12Wit0.6
€ 464,25
3043921 15Wit0.75
€ 581,64
3043922 20Wit1
€ 777,89

Details

Silicone offers many advantages over other forms of elastomers. It is well known for its use in food, pharmaceutical and other clean industry applications. It is a resilient material capable of maintaining many of its properties at extremely low and high temperatures. Some grades of silicone rubber can remain flexible, and show low levels of compression set, down to temperatures as low as -100 °C and as high as 315 °C. It is naturally electrically insulating but can be compounded to offer high resistance for the bleeding of static charges or to offer a low resistance to conduct signal voltages. High tear resistance, good elongation at break and tensile strength are some of the other characteristics of silicone.

Silicone will keep constant even at high temperatures, but should not be used with high pressure steam. Silicone has excellent resistance to heat (dry air), at +200°C intermittent and will remain flexible at low temperatures of -70°C and is also resistant to ultra-violet light, Ozone, sea water and weathering. Silicone also exhibits low in flammability and low smoke toxicity.

Polymax silicone solid sheets are available in 1.2 metres width and can be bought as individual 1 metre lengths or multiples of 1m and are available in 10m or 5m rolls depending on the thickness. Colours include; translucent (opaque), white, red oxide as standard and blue, grey and black are readily available. The thickness range are between 0.3mm and 12mm, although other thicknesses can be supplied on request. The standard hardness is 60° shore and we can offer hardness from 30° to 80° in some instances. Please ring an advisor to check if unsure.

Silicone sheeting has no resistance to oils. For oil resistance sheeting please see our ARIA rubber sheeting.

Polymax also offer in Solid sheeting:

  • Cutting and fabrication service. Gaskets, seals and strip.

  • Moulded sheet for smaller applications. Colour and hardness variations in small quantity catered for in moulded sheet from 12"x12", shore hardness range 30° to 80°

  • Adhesive backing: Cut sheet and gaskets can be supplied with a pressure sensitive adhesive.

  • Colour matching service. If you wish to colour match to silicone sheeting, we offer a service to nearest RAL/ PANTONE colour chart or to sample swatches. Please ask for more information if required.

Other products available in silicone are:

  • Sheeting: Solid and Sponge in General Purpose, Flame Retardant, High Temperature, Low Combustion (LCH), Ministry of Defence (DTD), Metal Detectable (Solid and Sponge), Soft Silicone, Tough Silicone, Fluorosilicone, Thermo-Chromic, High Tear (HT), Anti-Microbial available in both Sponge and Solid

  • Extrusion: Solid and Sponge (also available in Fluorosilicone)

  • Tubing: Solid ONLY

  • Gaskets: Solid and Sponge

  • Mouldings: Solid and Sponge (RTF Mouldings)

  • Compounds: Solid ONLY

  • Cables: Solid ONLY

  • Fabric Reinforced Sheeting: Solid ONLY


We will work to your engineering drawings or be happy to liaise on a joint solution. Please ask for a quotation on any or all of the services available if required.

Application GuideTemp Guide

FDA Grade Silicone Sheet Approvals:

FDA Standard 21 CfR 177.2600, BFR XV, EU 1935/2004, WRAS, FAR 25/ JAR 25 /CS 25 Horizontal Flammability Tests and Automotive Standard Part 571MVSS302, REACH and RoHS.

Extra informatie

Colour Nee
Materiaal Siliconen (VMQ)
Rol lengte (m) Nee
Breedte (mm) 1000
Tolerancie (±mm) Nee
Sell by the metre Ja
Hardheid (Shore A) 60
Maximale Temperatuur (°C) 300
Minimaal Temperatuur (°C) -60
Density (kg/m³) Nee
Treksterkte (MPa) 9
Rek bij breuk % 350
Slijtage mm3 (DIN 53516) Nee
Veilige Spanning (V) Nee
Voltage tested tot en met (V) Nee
Aantal vezelversterkende lagen Nee
Flooring Features Nee
Blijvende indrukking % 11
Blijvende indrukking proef methode 24hrs @150
