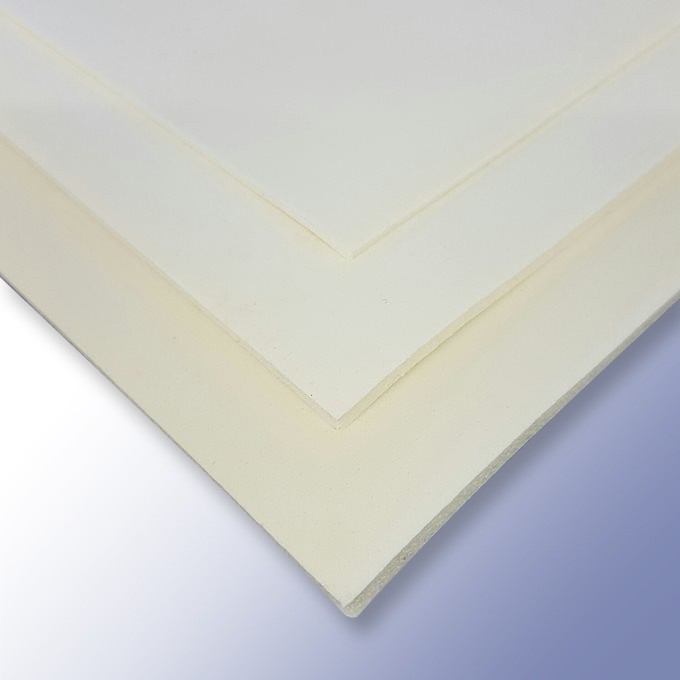

SILOCELL High Temp Silicone Sponge Sheet

Kan niet online besteld worden wel via het sales team. Voor meer informatie kan u contact opnemen voor een vrijblijvend advies

 +(31) 70 2500606
 sales@polymax.co.uk

Schrijf de eerste review van dit product

Snel overzicht

This high temperature silicone sponge with stand up to 270°C intermittently.

Rubber sheet tolerance allowance - width 3%, length 5%.
Per strekkende meter
Article No. Thickness
(mm)
3044241 1.50
3044242 2.00
3044243 3.00
3044244 4.00
3044245 5.00
3044246 6.00
3044247 8.00
3044248 10.00
3044249 12.00
3044250 15.00
3044251 20.00
3044252 25.00

Details

Polymax Silicone rubber sponge sheet is the preferred choice of medical, pharmaceutical and food processing industries.

Most commercially available silicone sponge products are made from gum based polydimethylsiloxane (PMDS). The polymer is chemically expanded when heat cured to create the closed cell sponge structure. Closed cell means that the cells are non-interconnecting; therefore they do not allow water to wick through the sponge. Generally, silicone sponges have superior mechanical properties and are considered to have a complete closed cell structure.

Expanded closed cell silicone sponge offers many of performance benefits of solid silicone in a softer and more compliant form.

Key Benefits of Closed Cell Silicone Sponge:

  • Wide operating temperature - silicone sponge has a temperature range of -73°C to 200°C
    We sell a high temperature version for use up to 270°CC, please contact a member of the sales team for more information
  • Water sealing – the closed cell structure allows for good water sealing with relatively low compressive forces.
  • Compression set resistance – silicone offers excellent compression set resistance (ability to rebound to original thickness), especially at higher temperatures, compared to most rubber material. Low compression set silicone sponges are available for even better performance than general purpose grades.
  • UV and ozone resistance – silicone products have excellent UV and ozone resistance due in part to their inorganic backbone. This provides long term performance.
  • Rugged – when silicone is required, silicone sponge parts are more durable than some other products openly available.
  • Outdoor gasketing – considering all the above benefits, silicone sponge is a good material choice for outdoor environments, from the arctic to the desert.

Typical or common uses of silicone sponge are namely gaskets, cushioning and sealing, but have been known to be used in many other applications.

Polymax silicone sheets are available in 1 metre widths and can be bought in a 10 metre roll or cut to varying lengths of full 1 metre. Colours include; white, red oxide and black and come in a range of thicknesses between 1.5mm and 30mm and also varying densities.

Please ring an advisor if you need more advice on colour options and availability.

Extra informatie

Colour Wit
Materiaal Siliconen (VMQ)
Rol lengte (m) Nee
Breedte (mm) 1000.00
Dikte (mm) Nee
Tolerancie (±mm) Nee
Sell by the metre Ja
Hardheid (Shore A) 9.7
Maximale Temperatuur (°C) 270.00
Minimaal Temperatuur (°C) -60.00
Density (kg/m³) Nee
Density (g/cm³) 0.26
Treksterkte (MPa) 0.44
Rek bij breuk % 148.90
Slijtage mm3 (DIN 53516) Nee
Veilige Spanning (V) Nee
Voltage tested tot en met (V) Nee
Aantal vezelversterkende lagen Nee
Flooring Features Nee
Blijvende indrukking % 0.60
Blijvende indrukking proef methode 22h @ 70
