Tipper Pads for Tipper Lorries Available at Polymax

Schrijf de eerste review van dit product

Snel overzicht

A large collection of tipper pads used to protect the chassis of tipping lorries.

Available in two types of metal as shown in the material column below: steel zinc plated (S) and aluminium (A).

Tipper Pads for Tipper Lorries Available at Polymax  at Polymax
7.1 7.1
13.6 13.6
24.5 24.5
22.5 22.5
22.5 22.5
25.5 25.5
22.5 22.5
24 24
24.5 24.5
21 21
25 25
24 24
24 24

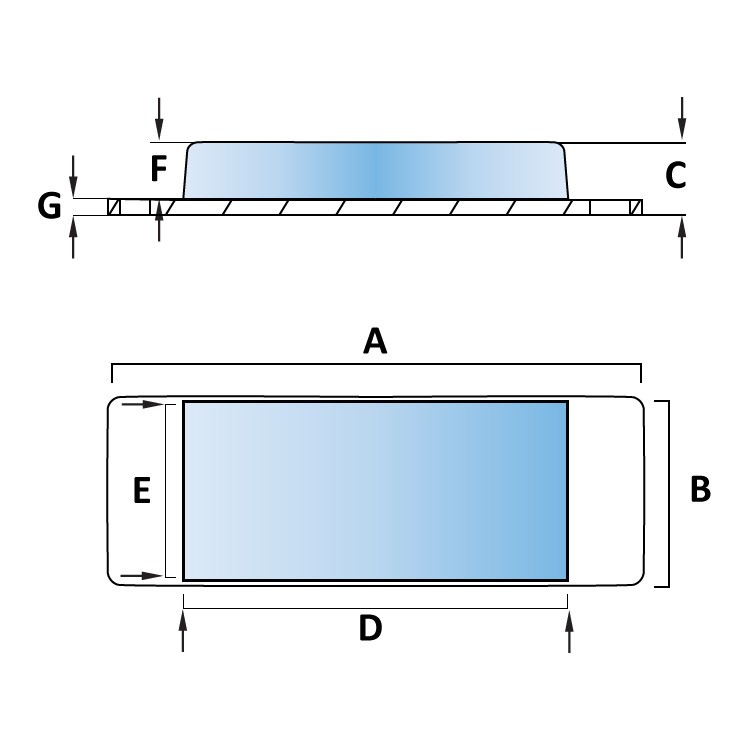

Article No. Profile Drawing A B C D E F G Bolt Mat Prijs Aantal

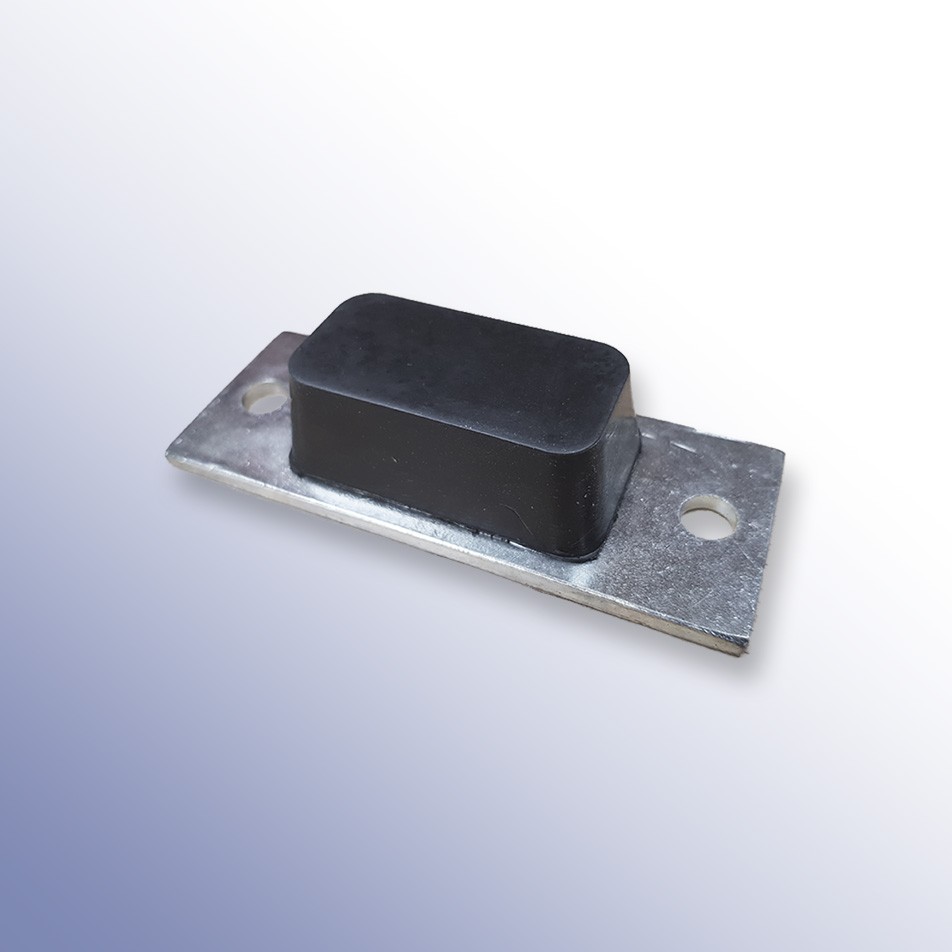

DM8419M6-2 Steel Tipper Pad 84L x 32W x 19H 84.000032.000019.000046251732 X M6S
€ 8,08

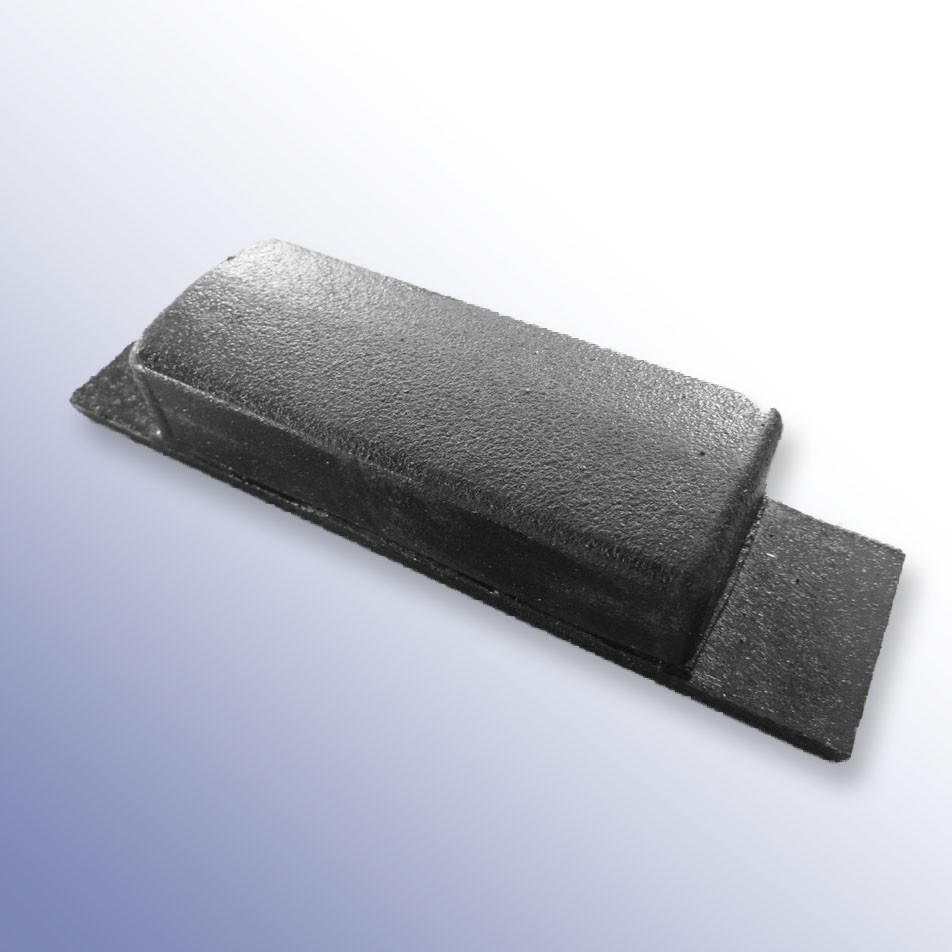

DM15240-3 Steel Tipper Pad Coated 152L x 40W x 30H 152.000040.000030.000010040255NoneS
€ 15,52

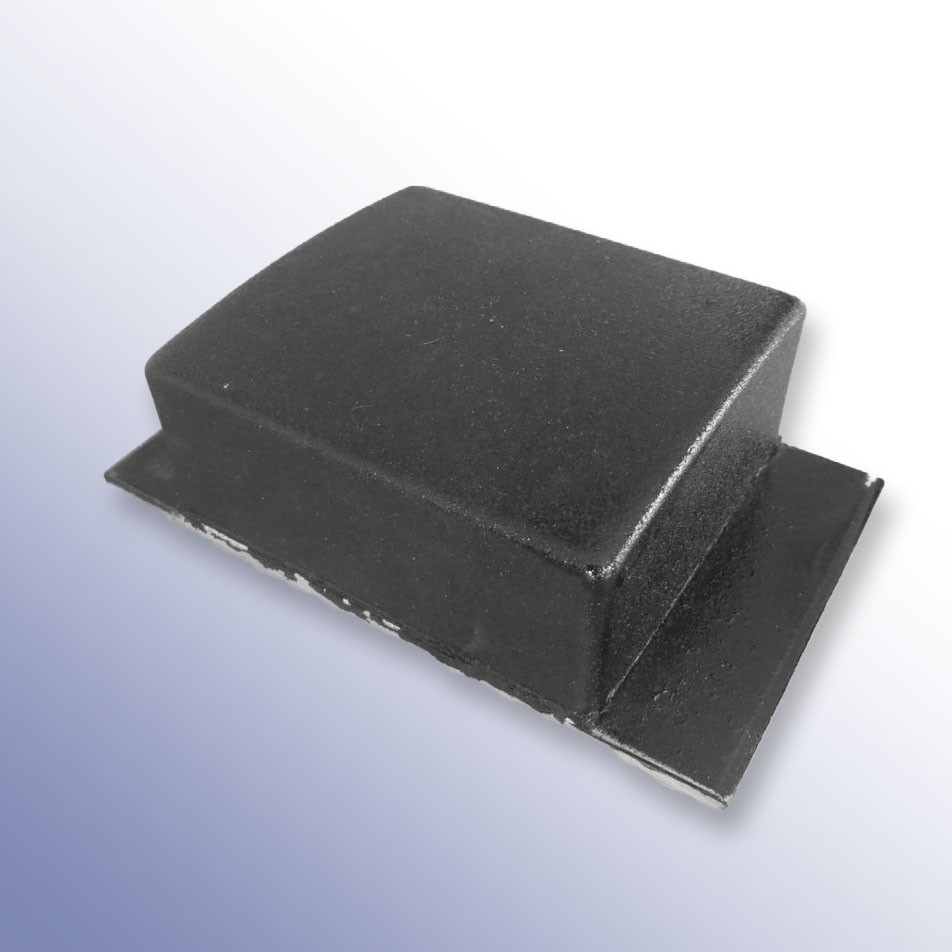

DM15275-3 Aluminium Tipper Pad Coated 152L x 88W x 43H 152.000088.000043.000010088385NoneA
€ 27,95

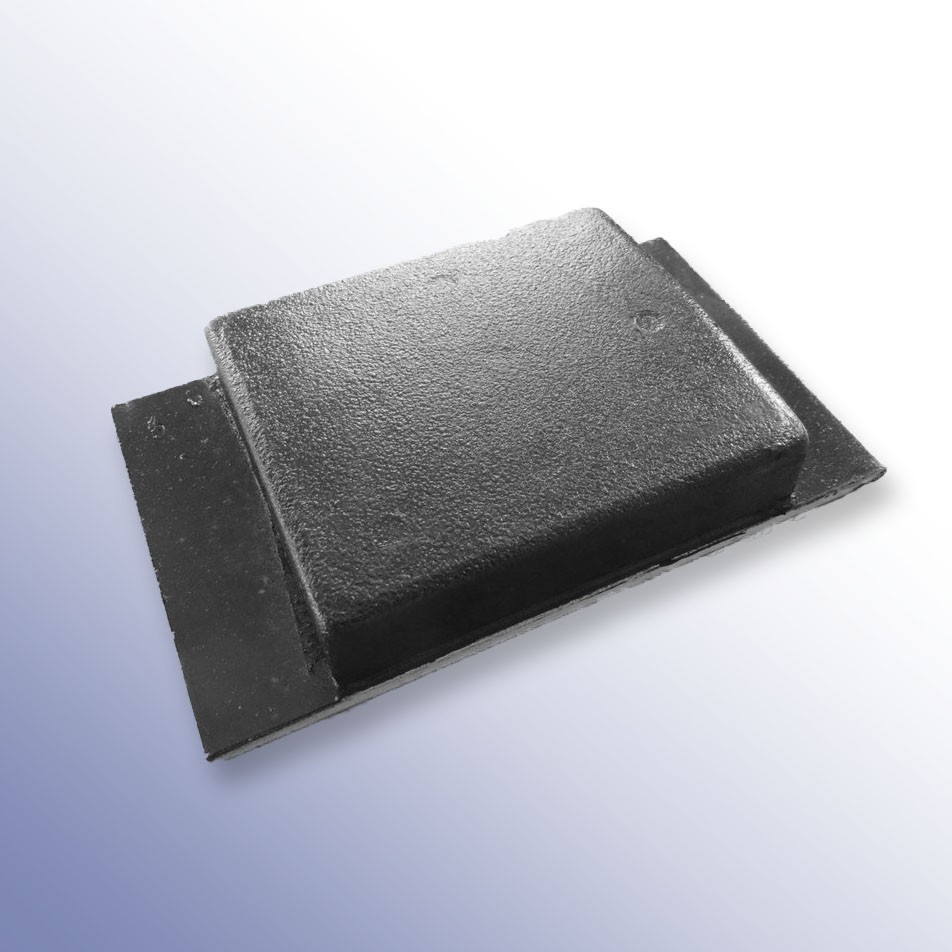

DM15288-3 Aluminium Tipper Pad Coated 152L x 88W x 28H 152.000088.000028.000010086235NoneA
€ 25,67

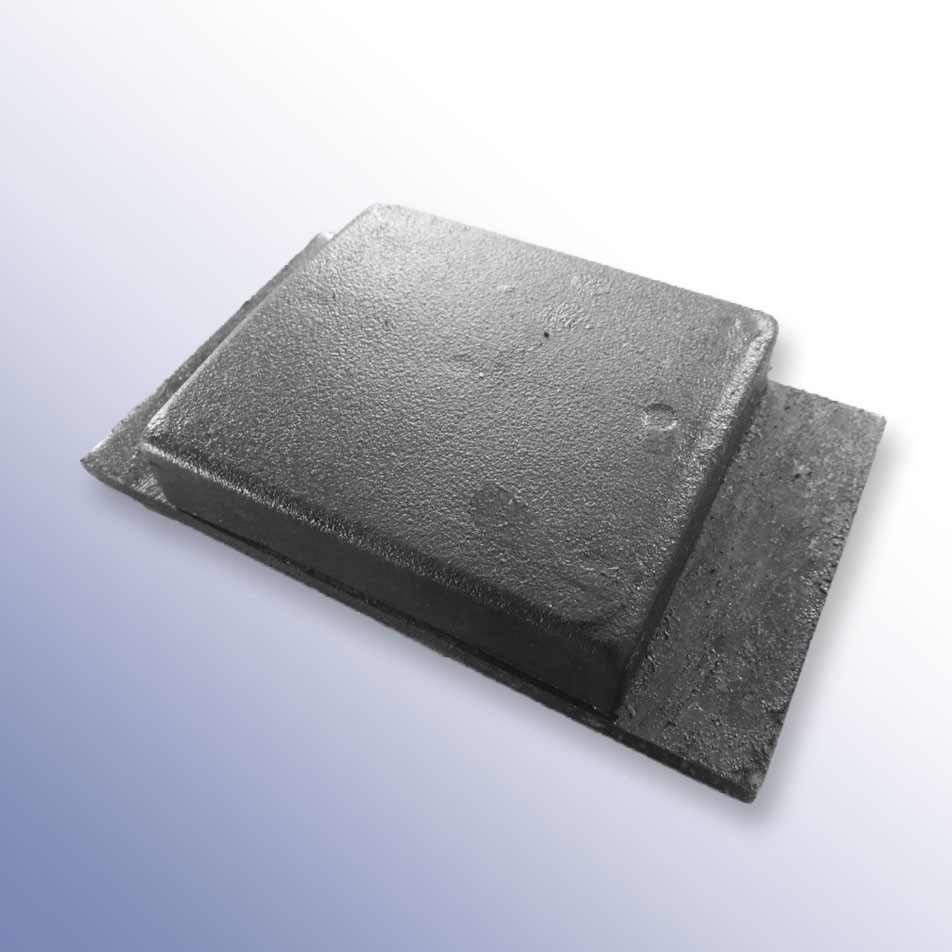

DM1528828-3 Steel Tipper Pad Coated 152L x 88W x 28H 152.000088.000028.000010086226NoneS
€ 25,67

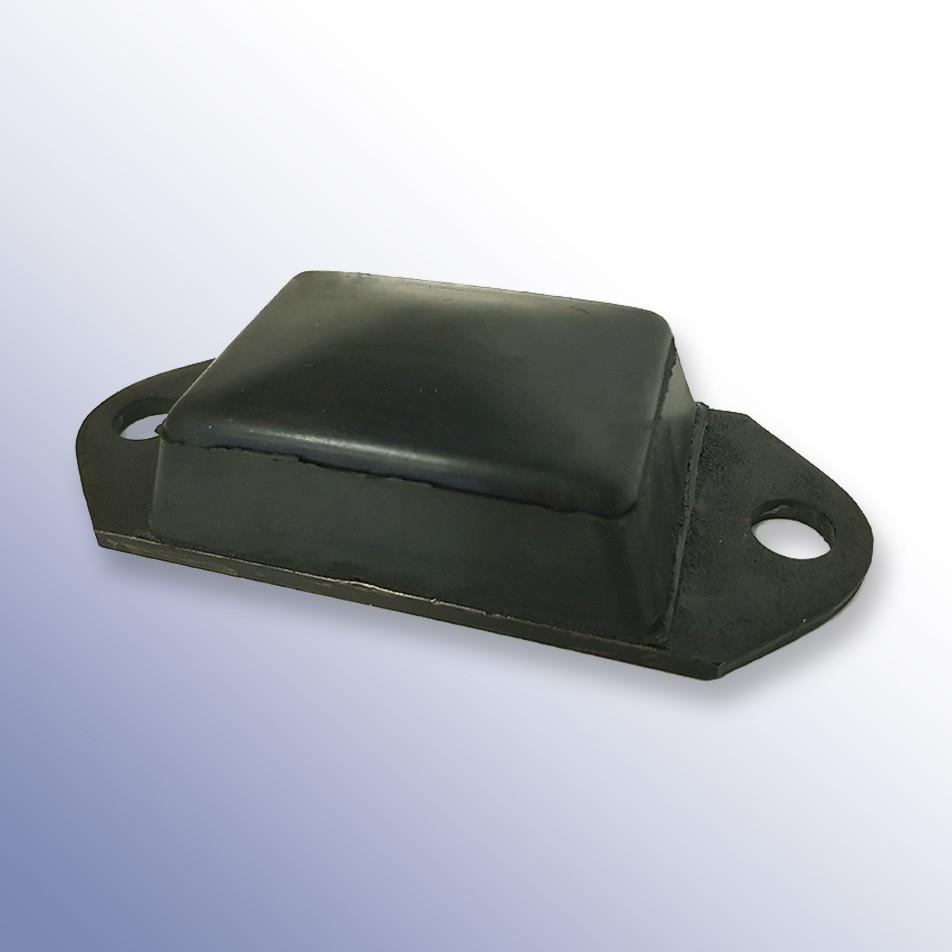

DM15637M12-2 Steel Oval Tipper Pad Coated 153L x 62W x 40H 153.000062.000040.000092623552 x M12S
€ 29,10

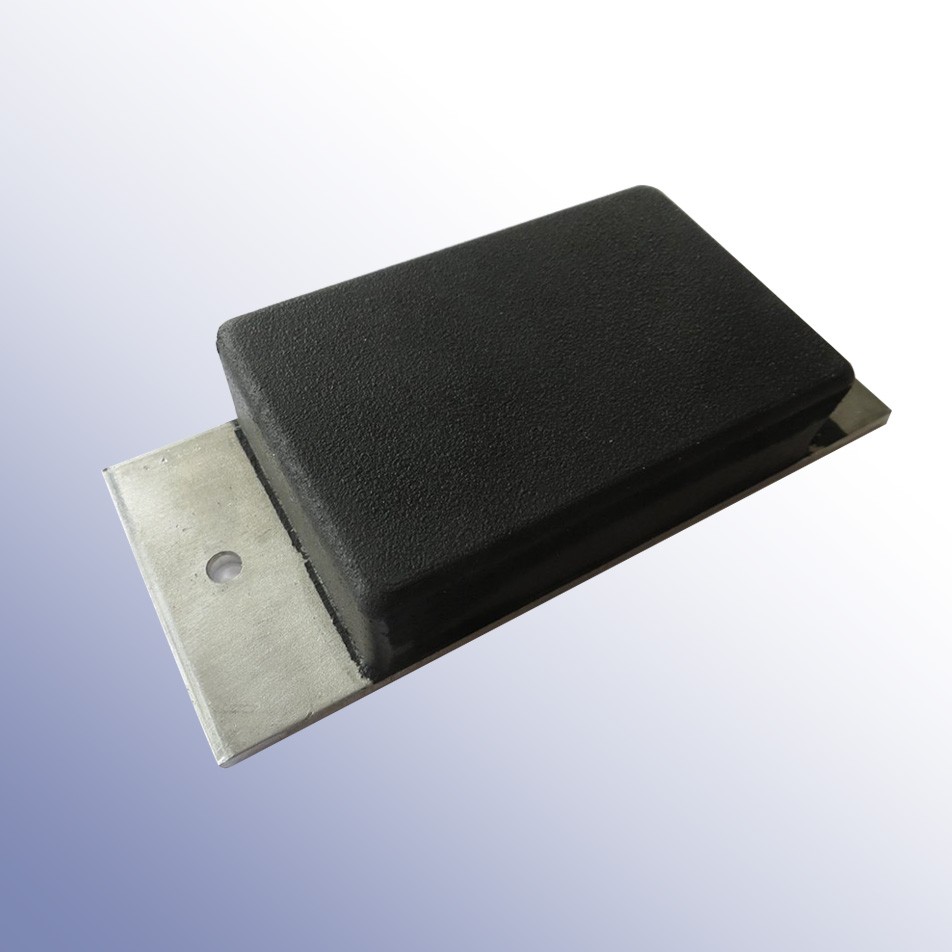

DM18034-3 Aluminium Tipper Pad 180L x 75W x 34H 180.000075.000034.0000115752952 x M8A
€ 25,67

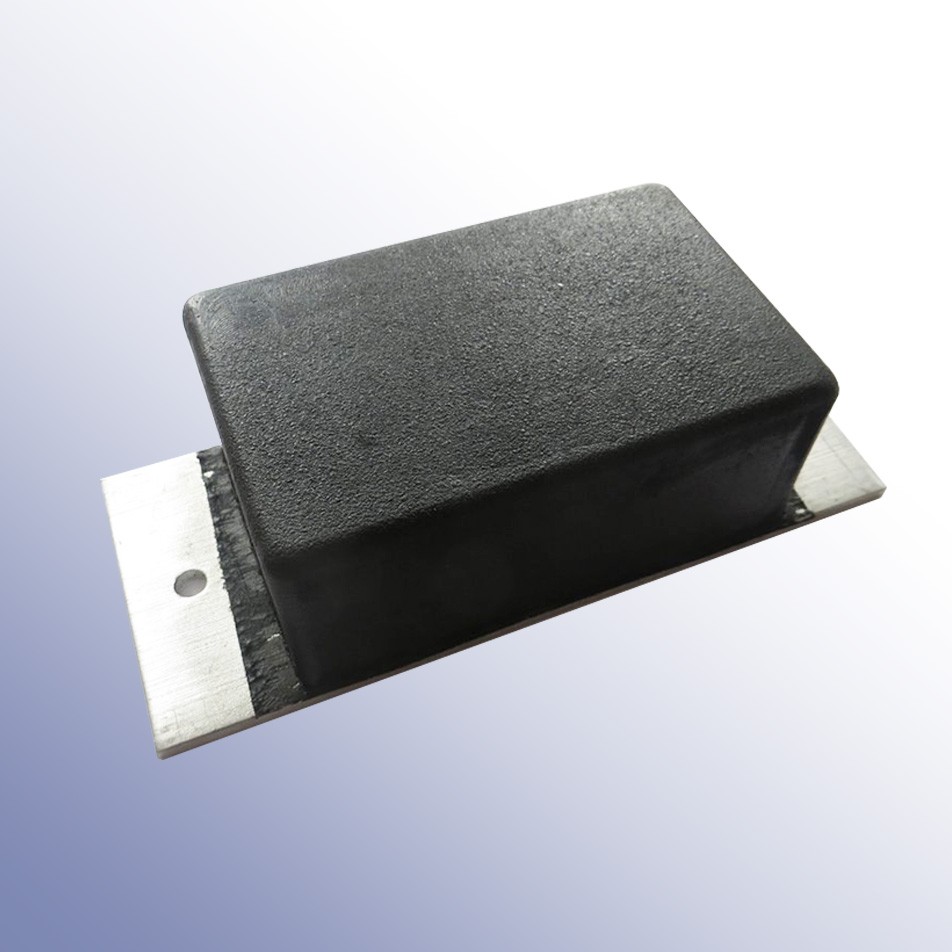

DM18045M8-3 Aluminium Tipper Pad 180L x 75W x 46H 180.000075.000046.0000115754642 x M8A
€ 27,38

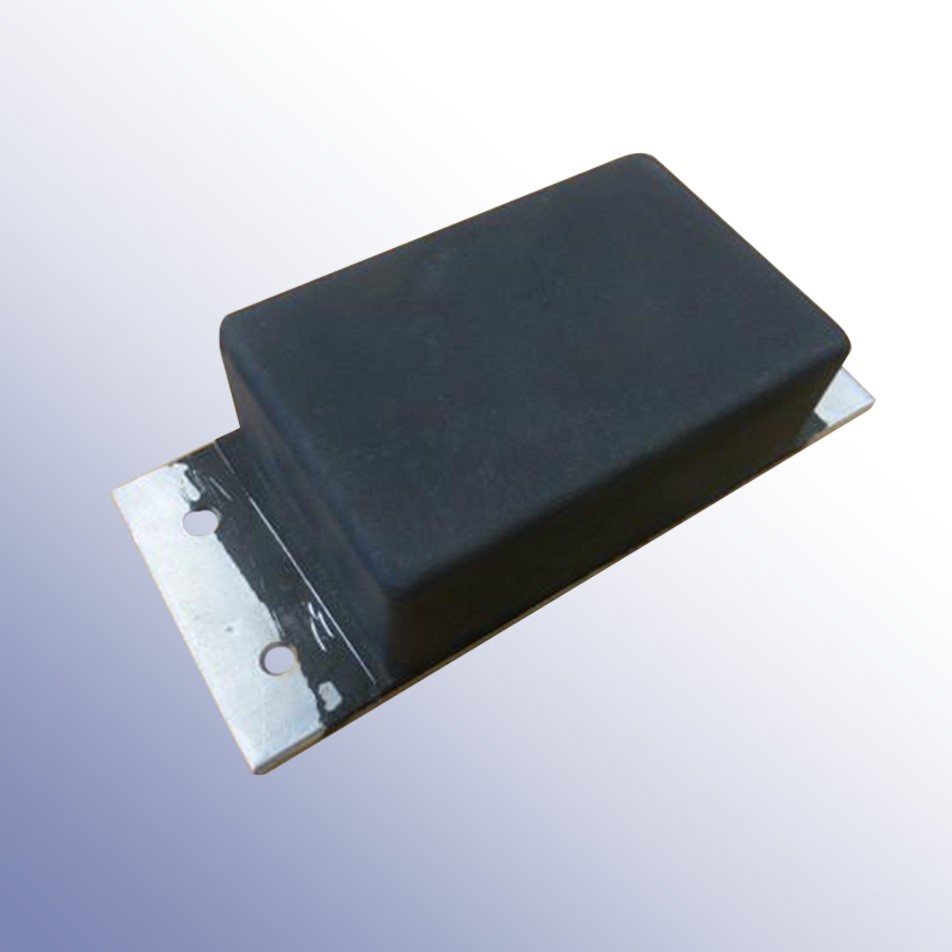

DM18050-3 Aluminium Tipper Pad 180L x 75W x 45H 180.000075.000045.0000115754054 x M8A
€ 27,95

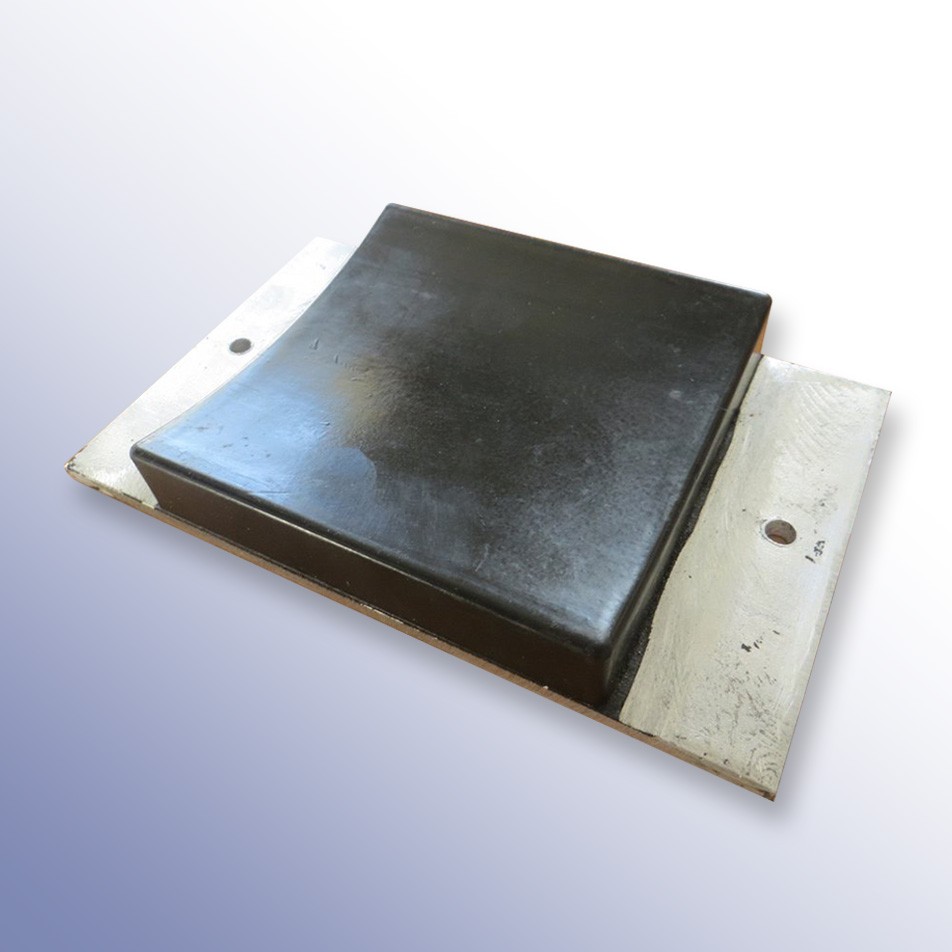

DM190115-3 Aluminium Tipper Pad Concaved 190L x 115W x 20-26H 190.0000115.000020.000012011214-2062 x M8A
€ 23,96

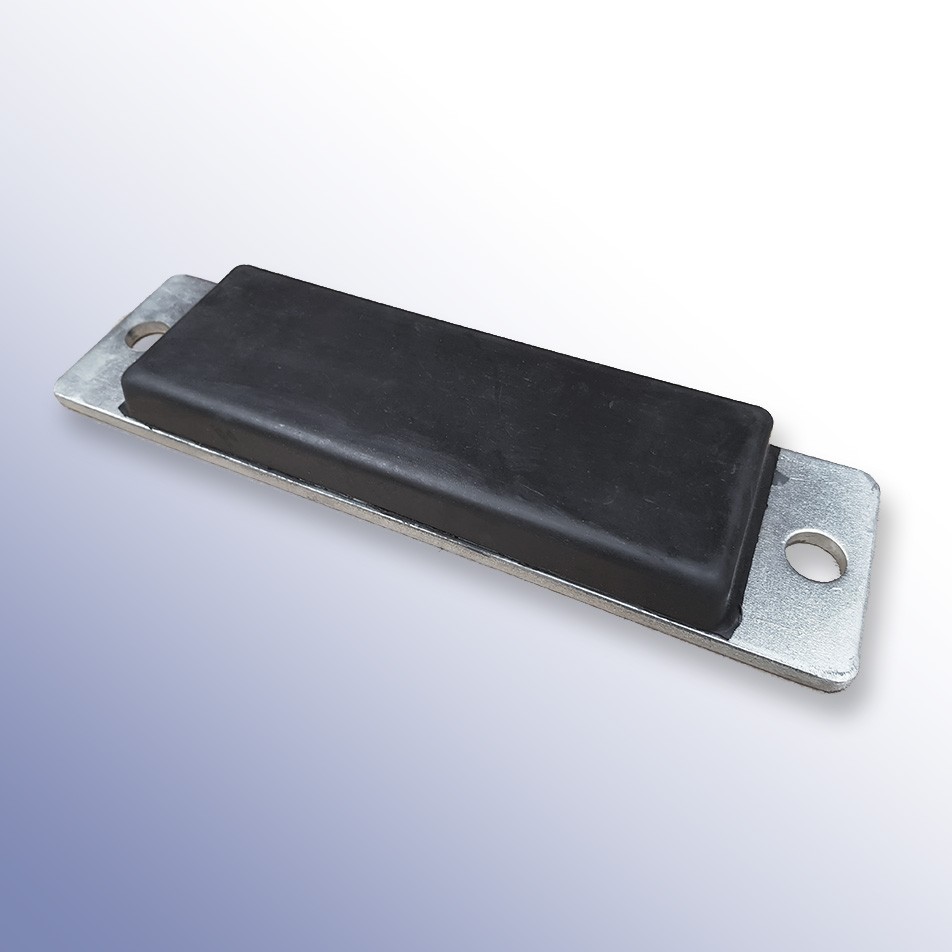

DM27325M16-2 Steel Tipper Pad 270L x 71W x 25H 270.000071.000025.0000203712052 x M16S
€ 28,53

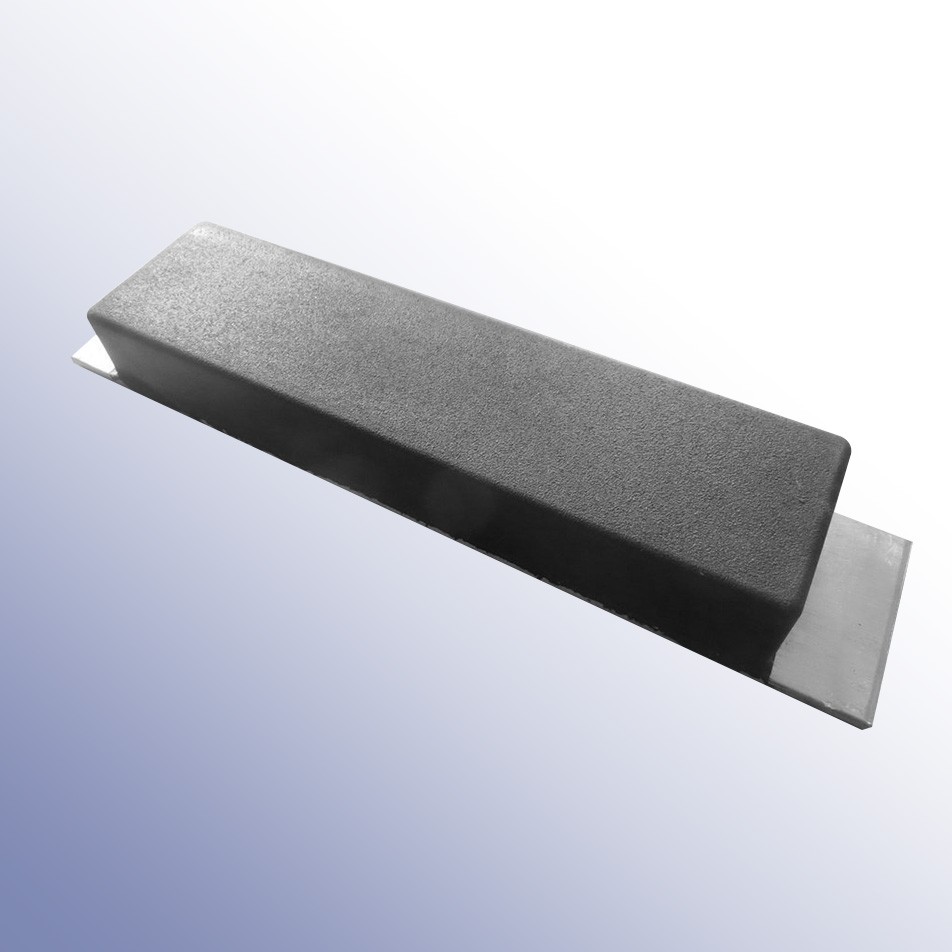

DM35544-3 Aluminium Tipper Pad 355L x 75W x 44H 355.000075.000044.000029075395NoneA
€ 27,38

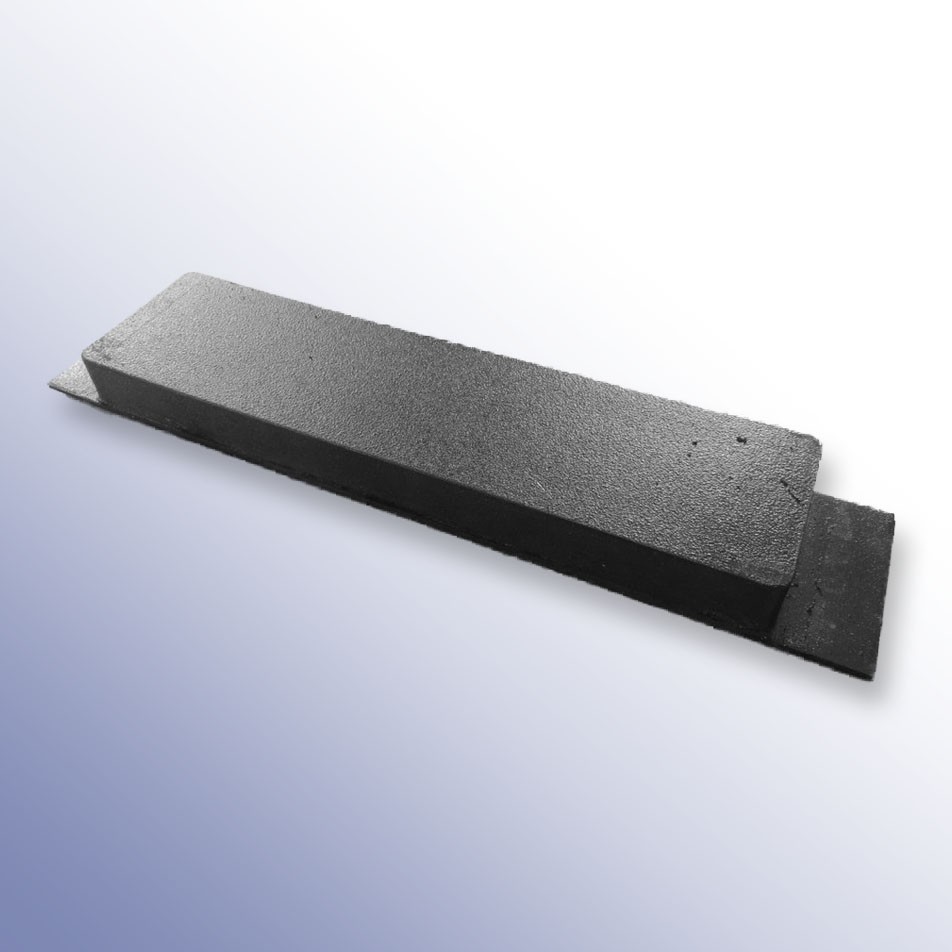

DM35575-3 Steel Tipper Pad Coated 355L x 75W x 30H 355.000075.000030.000029074273NoneS
€ 27,38

Details

Tipper Pads are used to protect the chassis of tipper lorries. They are designed to withstand heavy and repetitive loads, protecting the bodywork of the vehicle whilst dampening excessive noise whilst tipping. Tipper pads are constructed from a thick block of rubber with an aluminium or steel base. They can be fitted to the vehicle with screws or welded directly to the metal work. There is three types of base to choose from: Aluminium, steel and a version coated in black anti-rust paint.

Extra informatie

Colour Silver/Black
Materiaal NR
Maximale Lading in Compressie (Kg) Nee
Maximale Afbuiging (mm) Nee
Maximale Scheerbeurt Lading (Kg) Nee
Spring Tarief (Kg/mm) Nee
Hardheid (Shore A) Nee
Binnen Diameter (mm) Nee
Binnen Lengte (mm) Nee
Breedte (mm) N/B
Binnen Breedte (mm) Nee
Hoogte (mm) N/B
Bout Maat (mm) Nee
Dikte (mm) Nee
