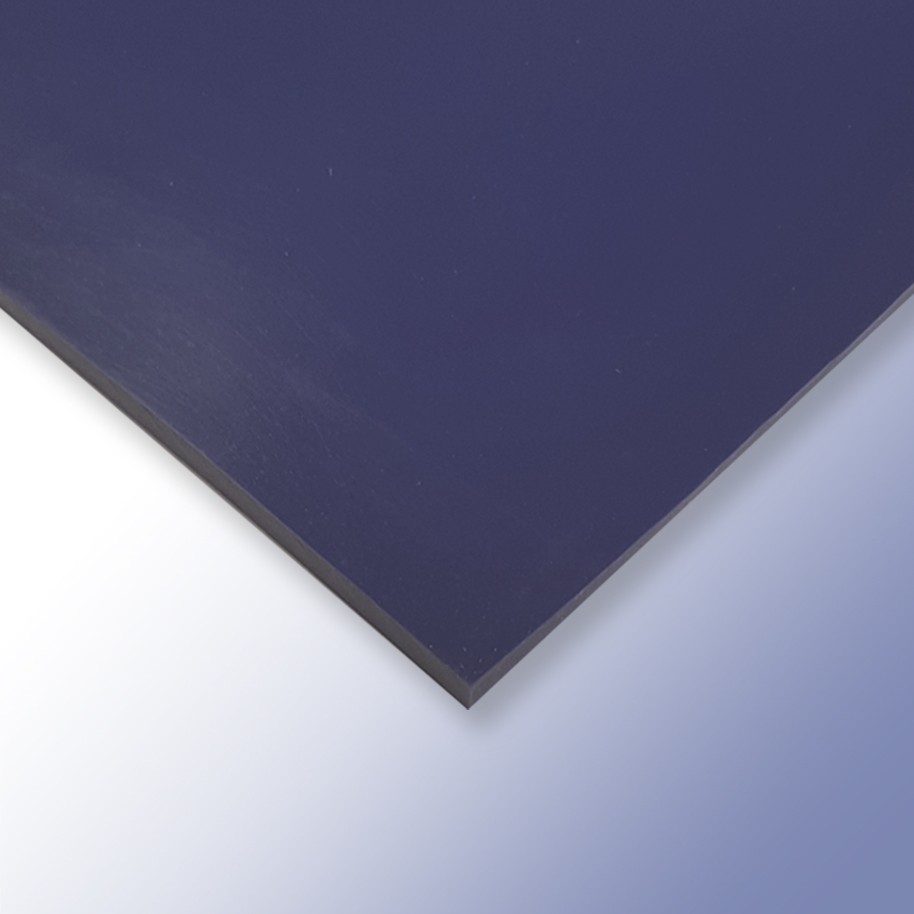

Metal Detectable Silicone Sheet

Schrijf de eerste review van dit product

Snel overzicht

Magnetic sheeting that allows metal fragments to be found and isolated safely.

Rubber sheet tolerance allowance - width 3%, length 5%.
Per strekkende meter
47.1 47.1
62.9 62.9
75.9 75.9
109.8 109.8
125.4 125.4
187.7 187.7
249.8 249.8
312.1 312.1
337.9 337.9
450.3 450.3
561.7 561.7
Article No. Thickness
(mm)
Tolerance
(±mm)
Magnetic
Pull
(mm)
Pijs per meter Aantal
3043923 0.500.27.3
€ 54,95
3043924 0.800.27.3
€ 73,36
3043925 1.000.27.3
€ 88,50
3043926 1.500.37.3
€ 128,08
3043927 2.000.37.3
€ 146,25
3043928 3.000.37.3
€ 218,91
3043929 4.000.47.3
€ 291,33
3043930 5.000.57.3
€ 363,99
3043931 6.000.57.3
€ 394,04
3043932 8.000.57.3
€ 525,15
3043933 10.000.57.3
€ 655,10

Details

Our long-lasting metal detectable silicone rubber sheet comes in a hardness of 60° shore A. Fully compliant to industry standards, metal detectable sheeting allow fragments of failed seals to be found and isolated safely. Popular in the food processing and pharmaceutical industries, the superior flexibility, elasticity and heat resistance make this the only choice for when extra care is needed.

This rubber sheeting is available with pressure sensitive adhesive backing. Polymax also provide a fabrication service to create gaskets or strips - please call us for more information.

Extra informatie

Colour Blauw
Materiaal Siliconen (VMQ)
Rol lengte (m) Nee
Breedte (mm) 1200.00
Dikte (mm) Nee
Tolerancie (±mm) Nee
Sell by the metre Ja
Hardheid (Shore A) 63
Maximale Temperatuur (°C) 200.00
Minimaal Temperatuur (°C) -60.00
Density (kg/m³) Nee
Density (g/cm³) Nee
Treksterkte (MPa) 8.00
Rek bij breuk % 370.00
Slijtage mm3 (DIN 53516) Nee
Veilige Spanning (V) Nee
Voltage tested tot en met (V) Nee
Aantal vezelversterkende lagen Nee
Flooring Features Nee
Blijvende indrukking % 11.00
Blijvende indrukking proef methode 24hrs @150

Further Information (File Downloads)
