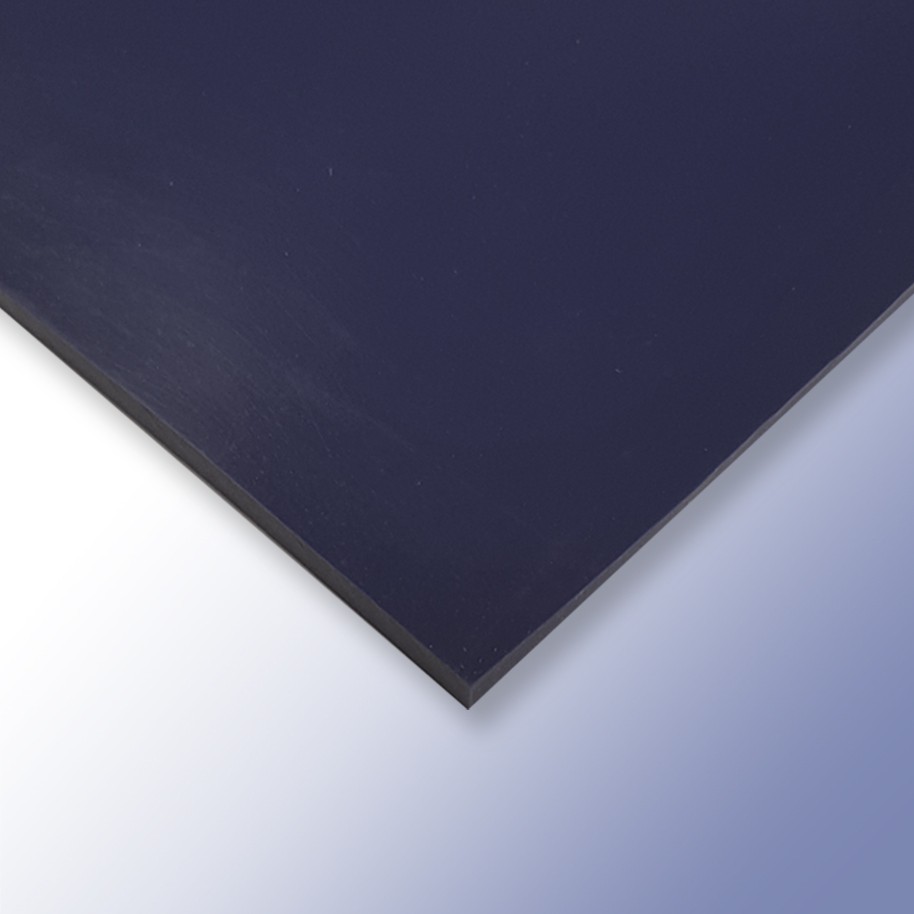

Electrically Conductive Silicone Sheet

Kan niet online besteld worden wel via het sales team. Voor meer informatie kan u contact opnemen voor een vrijblijvend advies

 +(31) 70 2500606
 sales@polymax.co.uk

Schrijf de eerste review van dit product

Snel overzicht

Carbon black filled silicone material that can conduct a low electrical amperage.

Rubber sheet tolerance allowance - width 3%, length 5%.
Article No. Thickness
(mm)
Tolerance
(±mm)
Volume Resistivity
ohms-cm
3043943 0.50.155
3043944 0.80.25
3043945 10.35
3043946 1.60.35
3043947 20.35
3043948 3.20.35

Details

Our specially designed electrically conductive silicone solid sheeting is perfectly suited to provide superior shielding from radio frequency and electromagnetic interference. Acting as a low amperage conductor, these 915mm wide sheets will also give you far greater protection against electrostatic discharge, with the addition of also being flame-retardant.

This rubber sheeting is available with pressure sensitive adhesive backing. Polymax also provide a fabrication service to create gaskets or strips - please call us for more information.

Extra informatie

Colour Blauw
Materiaal Siliconen (VMQ)
Rol lengte (m) Nee
Breedte (mm) 915
Tolerancie (±mm) Nee
Sell by the metre Nee
Hardheid (Shore A) 65
Maximale Temperatuur (°C) 260
Minimaal Temperatuur (°C) -54
Density (kg/m³) Nee
Density (g/cm³) 1.17
Treksterkte (MPa) 5.3
Rek bij breuk % 325
Slijtage mm3 (DIN 53516) Nee
Veilige Spanning (V) Nee
Voltage tested tot en met (V) Nee
Aantal vezelversterkende lagen Nee
Flooring Features Nee
Blijvende indrukking % 15
Blijvende indrukking proef methode 22hrs @100
